QT4-15 Semi-automatic Block Machine

The machine can produce hollow block,solid block,paving block by changing mould.Way of moulding is vibration combined with hydraulic pressure.So blocks have good strength and density.

Key words :  Concrete Block Machine

Category :

Product Series

Concrete Block Machine

QT4-15 Semi-automatic Block Making Machine

Tel：0086-15865763888

E-mail：info@huatongmachinery.com

RELATED PRODUCTS
ONLINE MESSAGE

Production Capacity of QT4-15Semi-automatic Block Making Machine

Block Type


Size（L x W x H)

Pcs./

Pallet

Pcs./

Hour

Pcs./

8Hours

Hollow Block

400x200x200mm

4

625

5000

Hollow Block

400x150x200mm

5

780

6240

Hourdi Block

530x160x195mm

5

780

6240

Stock Brick

220x110x70mm

20

4500

36000

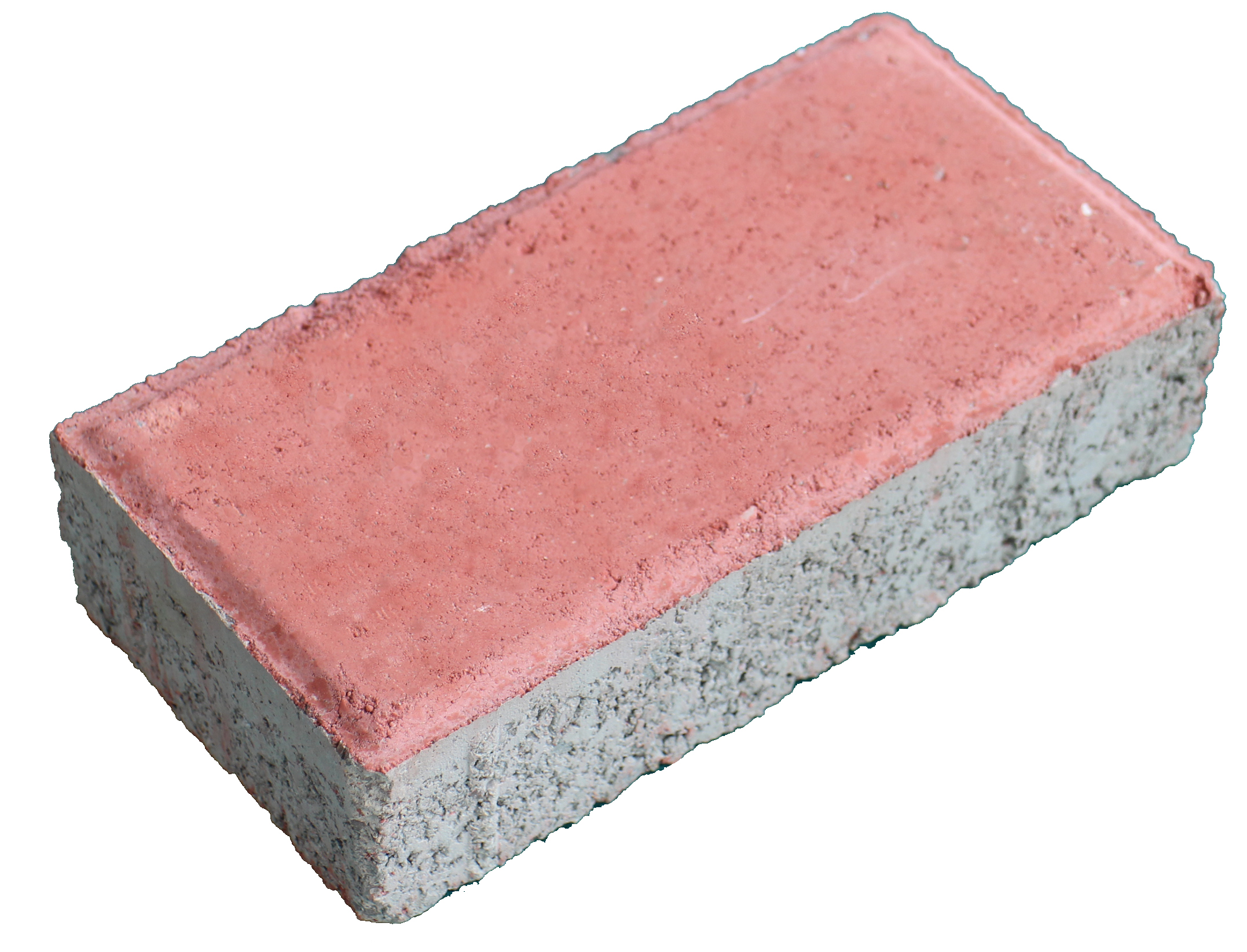

Paving Block

200x100x60mm

16

2300

18400

Paving Block

225x112.5x60mm

14

2000

16000


Technical Parameter of QT4-15Semi-automatic Block Making Machine

Dimension

2800×1570×2600mm

Weight

4500KG

Pallet Size

960×630mm

Power

19.9KW

Mode of Vibration

Table Vibration

Vibration Frequency

4200r/min

Vibration Force

70KN

Cycle Time

15-25sec

Features of of QT4-15Semi-automatic Block Making Machine

1.The machine can produce hollow block,solid block,paving block by changing mould.Way of moulding is vibration combined with hydraulic pressure.So blocks have good strength and density.

2.The way of concrete feeding into mould is compulsive by three shaft with blades.It is quick speed and well distributed.The vibration is oil-immersed to have a good lubrication.

3.Only two vibration motors is always working,other motors works fitfully.So it is power saving.

4.Concrete feeder,pallet feeder,up mould and down mould is powered by hydraulic system.

5.Mould is made with heat treatment,Carburizing.So working life of mould is improved.
