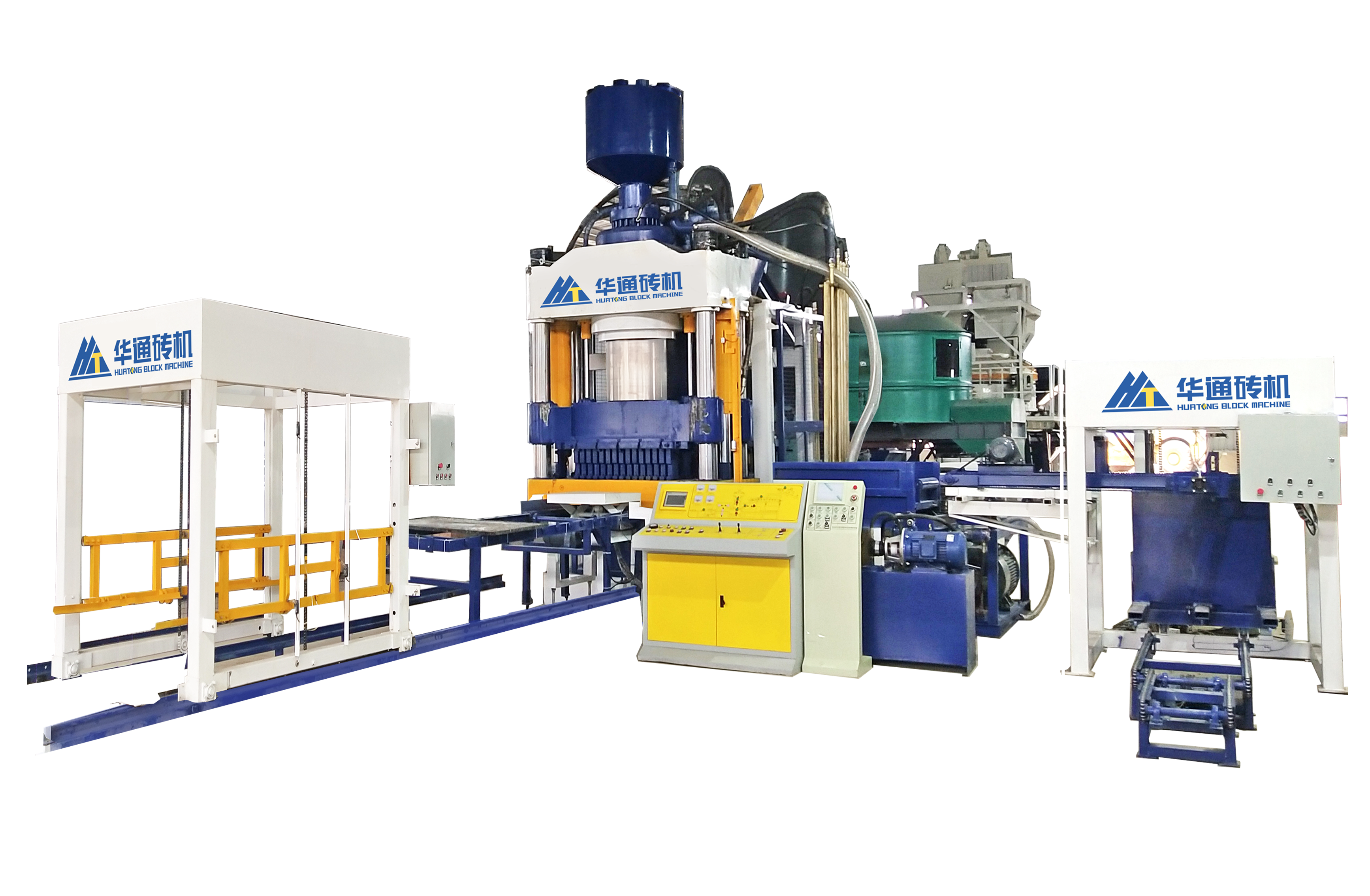

HT1000 Model Automatic Hydraulic Press Brick Machine

Key words : Concrete Block Machine

Category :

Product Series

Hydraulic Press Brick Machine

HT1000 Automatic Hydraulic Press Brick Machine

Tel：0086-15865763888

E-mail：info@huatongmachinery.com

RELATED PRODUCTS

ONLINE MESSAGE

HT1000 Model Technical Parameter

Working Pressure	9000KN
Brick Production Per Cycle	45
Press Cycle	14-18S
Pressing Mode	Double Direct Press
Maximum Hydraulic Pressure	31.5Mpa
Mould Open Size	1340x1120mm
Percentage of Coal Fly Ash	70%
Brick Production Per Year	60,000,000
Coal Fly Ash Consumption	11,0000-12,0000Tons
Power	105.4kw
Weight	40T
Exhaust Times	More Than 3 times(Adjustable)
Maximum Mould Height	360mm

Features and Uses

HT1000Hydraulic Press Brick Machine is combined with mechanic,electric and hydraulic parts.The core components are selected from famous abroad brand.It have features of Continuously Variable Transmission,adjustable moulding pressure,fault prompt and alarm.Its core system have functions of Remote control, system upgrade and fault diagnosis.It Provides convenience for client’s needs in time.HT1000Model can work with high level stacker,shuttle cart,steaming cart and autoclave to be full production line.It can also work with pallet feeder,wet block conveyor and stacker to be simple production line.HT1000 main machine have three pillarsfour post.one frame and five hydraulic cylinders.Five cylinders is main press hydraulic cylinder,speed cylinder,demoulding cylinder.There is also one sub frame connected with demoulding frame.The sub frame installed with raw materials feeder.Main Machine control raw materials speed by speed cylinder and main cylinder.This improve bricks density.HT1000 model used good steels with heat treatment and CNC machining.This improve machine Assembly accuracy and working life.HT1000 have features of moderate size,reasonable components,steady operation,high pressure, short cycle and high intelligent.In production,it can produce standard bricks and hollow blocks by changing mould,pressing parameter,sensor position,pressing time and times.It is first choice for producing coal fly ash bricks,coal fly ash and sand bricks and concrete bricks.After detection,this machine is high pressure,quick speed,low noise.It meet the National environment requirements.HT1000 is one good equipment for large enterprise producing environment bricks.
