MPG Series Planetary Concrete Mixer

Key words : Concrete Block Machine

Category :

Product Series

Planetary Mixer

Tel：0086-15865763888

E-mail：info@huatongmachinery.com

RELATED PRODUCTS

ONLINE MESSAGE

Features

The motor is siemens brand with great power in Transmission device.The reducer is made by Dalian Konic Group according to requirements of Aiwante.The design and production adopts combination of Germany and Chinese Standard.The good components give mixer good loading capacity.The mixer has high torque,low noise and low consumption.Mixer movement is reliable and life is extended.

Technical Parameter

Model	MPG330	MPG500	MPG750	MPG1000
Item	MPG330	MPG500	MPG750	MPG1000
Input Capacity(L)	500	750	1125	1500
Output Capacity(L)	330	500	750	1000
Output Weight(KG)	800	1200	1800	2400
Mixing Power(KW)	15	18.5	30	37
Hydraulic Discharge Power(KW)	--	--	--	--
Planetary /Blade	1/2	1/2	1/2	2/4
Side Scraper	1	1	1	1
Discharging Paddle	1	1	1	1
Weight(KG)	2000	2400	3900	6200
Elevator Motor(KW)	4	4	7.5	18.5
Dimension (LWHmm)	187018701855	223020801880	258023402195	289026022220
Model	MPG1500	MPG2000	MPG2500	MPG3000
Item	MPG1500	MPG2000	MPG2500	MPG3000
Input Capacity (L)	2250	3000	3750	4500
Output Capacity（L）	1500	2000	2500	3000
Output Weight(KG)	3600	4800	6000	7200
Mixing Power(KW)	55	75	90	110
Hydraulic Discharge Power(KW)	3	4	4	4
Planetary /Blade	2/4	3/6	3/6	3/9
Side Scraper	1	1	1	1
Discharging Paddle	1	2	2	2
Weight(KG)	7700	8500	10500	11000
Elevator Motor(KW)	18.5	22	22	22
Dimension(LWHmm)	323029022470	342432172790	369035282790	369035283070

Transmission System

Special designed gear box can spread motor power averagely into mixing shaft.The transmission device is installed outside.Mixing motor is Siemens brand..The reducer is made by Dalian Konic Group according to requirements of Aiwante.The design and production adopts combination of Germany and Chinese Standard.

Access Hole

Access Hole

The access hole is large,it is convenient to clean and maintain.The key safety control device ensure machine do not work when access hole is open even power is on.

Mixing Device

Mixing Device

Mixing shafts rotate itself and revolution movement.Mixing of blades is crossed and do not have any blind angle and low mixing space.The mixing machine is high strength,but it do not damage materials.It do not change materials shape and do not crush materials.

Hydraulic Pump(Discharging Device)

Hydraulic Pump(Discharging Device)

The hydraulic discharging system have manual open device.It can be opened when power is not available.Discharging door have limit switch,it can open door according to requirement.The discharging door have special designed seal device to ensure reliability.It is environmentally friendly.Switch of Discharging door have buffer device.

Mixer Advantage

Planetary Mixer is produced by our excellent craft according to our experience and absorbing advanced technology of domestic and abroad mixer.Planetary Mixer apply to mix high quality concrete,it can also be used into other industry because of high efficiency,small space requirement,low consumption and environmentally friendly.Planetary Mixer can work separately,it can also used as main machine of ready mix concrete machine.

Scope of Application

Planetary Mixer is fit for all types of construction site, hydro-power,road,port,bridge,airport,small and big prefab and ready mix concrete factory.

Planetary Mixer can work with PLD Series Batching Machine as Ready Mix Concrete plant.It can also work as main machine of dry mortar mixing plant and PC concrete mixing plant.It can be used to produce all types of high quality dry concrete,plastic concrete,flow able concrete,light weight aggregate concrete.It can be used for different types construction site,cement products factory and PC prefab factory.

Planetary Mixer have high mixing strength.It mix averagely and can be used for fire-proof factory and block making factory.

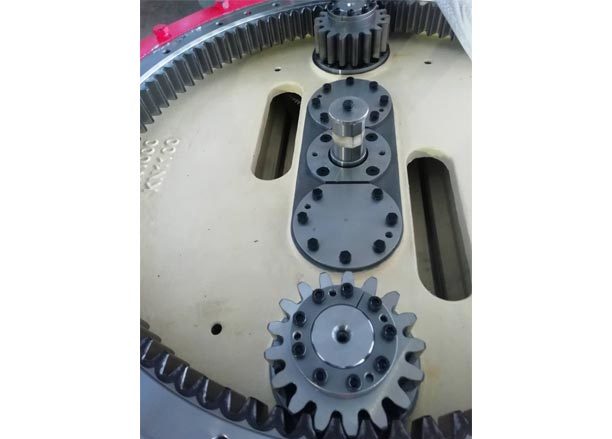

Mixing device of Planetary Mixer

The gear box of planetary mixer is one set double direction.The power of gear box make mixing shaft rotate itself and revolution movement.At the same time,side scraper revolution move inside mixing tank.The direction of revolution and rotation is opposite.　Planetary mixing direction is different too.

Working Principle of Planetary Mixer

Mixing blade of Planetary Concrete mixer push materials to move forward.The materials moves circularly pushed by centrifugal force.The materials have conviction movement.The relative motion of materials produce extrusion and shear force,materials goes up too.Then materials have both lateral and vertical movement.Microscopically this type of mixing can break gather of cement.It make cement molecule and water molecule combined together.It can achieve real average microscopically.

Mixing motion of Planetary Concrete mixer is high efficiency,high average and without blind space.The mixing process is acceleration, quick speed and effort saving.The mixing motion is layer by layer and structure becomes more and more compressed.So it is high efficiency and average.
